Applications

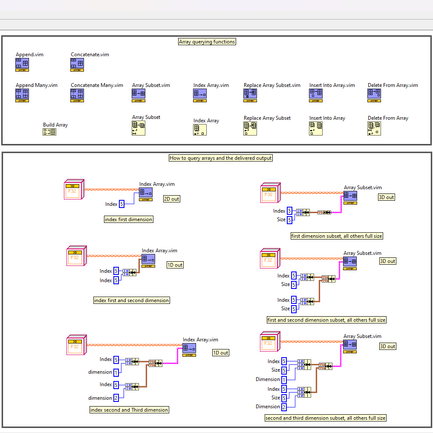

GPU LabVIEW analog indexing

Index right on you GPU with indexing functions which have direct LabVIEW analogies.

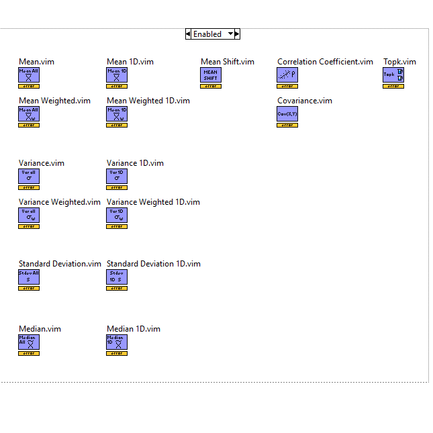

GPU enabled Statistics Algorithms

Get statistical data on a dimension or an entire array in a breeze. All on your GPU.

GPU enabled Numeric Algorithms

Basic arithmatic on the GPU is easy with these simple LabVIEW-like functions.

GPU enabled Vector Algorithms

With vector algorithms you can treat dimensions as if they are individual datasets. Great for analysis of multiple datachannels being merged into one 2D array.

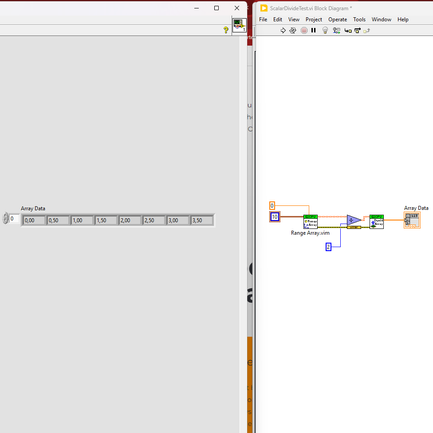

Use of scalar values with GPU

You don't have to jump through hoops in your LabVIEW code. Just hook up scalar values to your function in order to use it for each index on your GPU.

Data representation on wires

No need to guess. Datatypes and dimension count is propagated through your algorithm as if you are using regular LabVIEW.

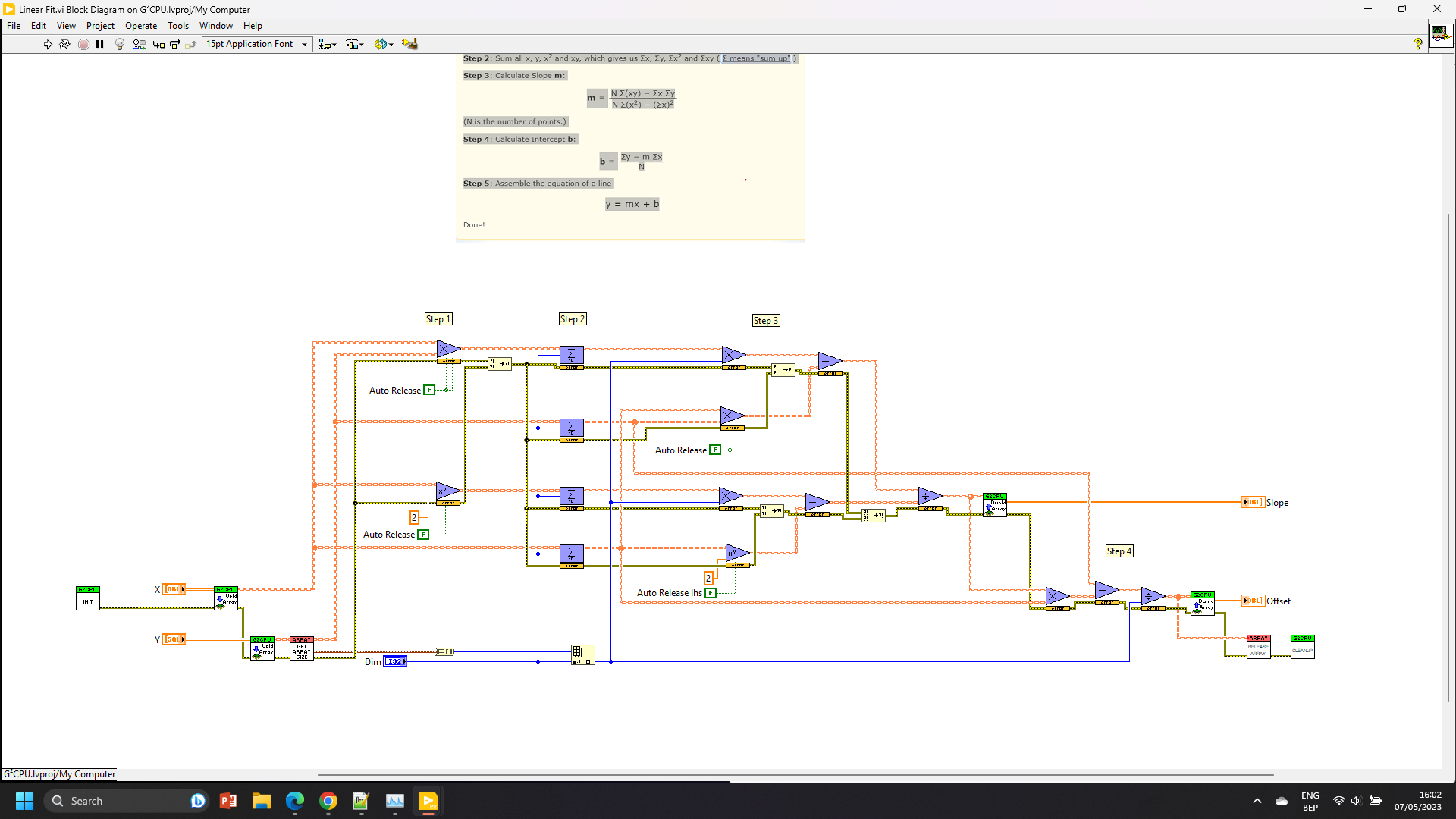

Linear Fit with multiple dimensions

Benchmarking code

Benchmark results

Comparison of matrix multiplication with varying array sizes on different technologies and devices.

Use indexers, front panel

Search for k max values in channel 0.
Use the indexes of these max values to get the accompanying values in channel 1.

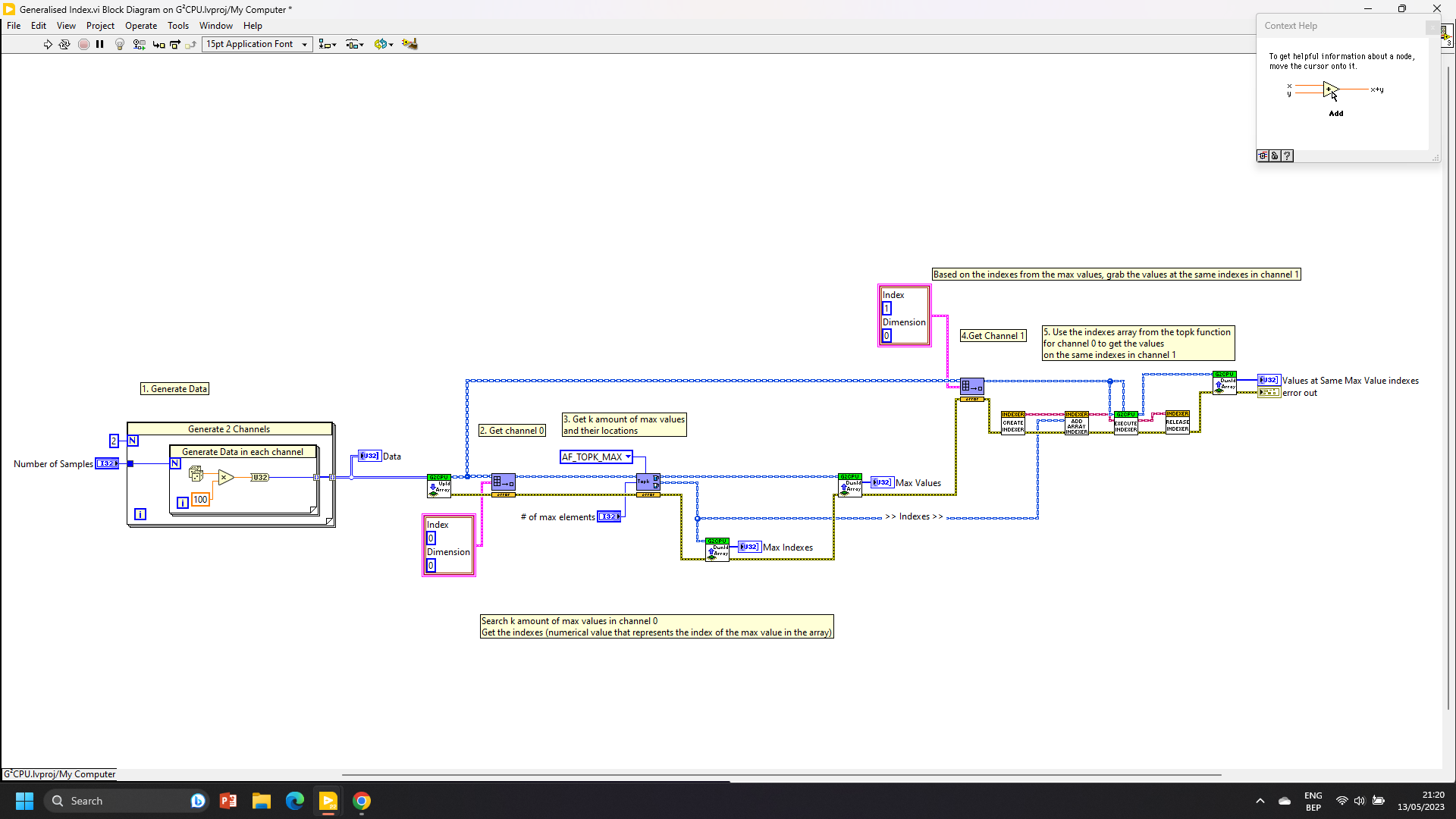

Use indexers, block diagram

Search for k max values in channel 0.
Use the indexes of these max values to get the accompanying values in channel 1.

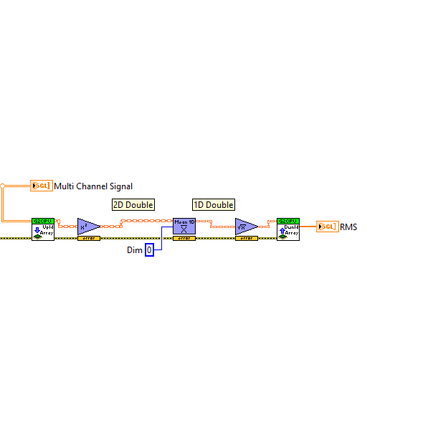

Calculation of the RMS on multiple channels
